Key takeaway: Medical device enclosures are part of the finished device’s regulated configuration. Material, part design, shielding, labeling, cleanability, strength, and other enclosure decisions should be defined early against the device’s applicable safety, performance, and use requirements.

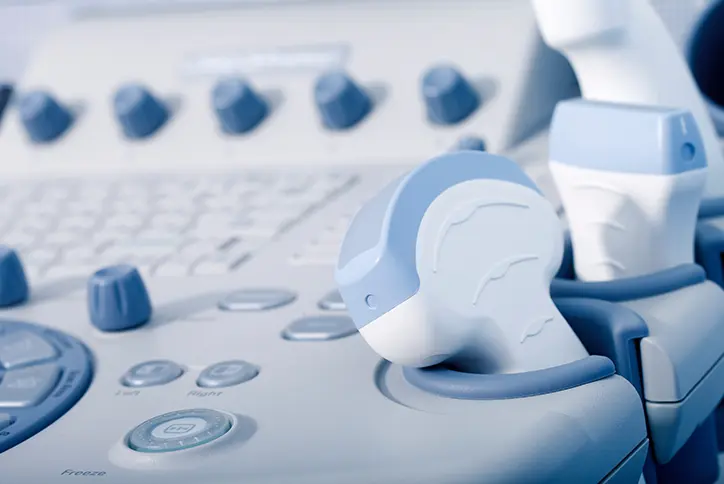

A molded plastic enclosure is part of the finished medical device’s tested and documented configuration. Its material, geometry, openings, fasteners, surface features, and markings can affect electrical safety, electromagnetic compatibility, ingress protection, biocompatibility, cleaning, sterilization, mechanical strength, flammability, and usability. Enclosure requirements therefore come from the regulations and standards that apply to the completed device, not from a single enclosure-specific rule. Manufacturers should identify those requirements before finalizing the resin, tooling, part design, and molding process.
FDA Quality Management System Regulation
Finished-device manufacturers must comply with FDA’s Quality Management System Regulation under 21 CFR Part 820. They must document and control enclosure requirements that affect the finished device’s safety, performance, and regulatory compliance. These requirements may include resin grade, critical dimensions, tolerances, surface finishes, assembly features, acceptance criteria, and change controls.
A contract injection molder does not determine whether the finished device complies with FDA requirements. The finished-device manufacturer retains that responsibility and establishes the supplier and component controls needed for the enclosure. Depending on the component and its risks, those controls may include material traceability, documented inspections, process controls, lot records, change notification, and validation data.
Electrical Safety
Under the Federal Food, Drug, and Cosmetic Act, a medical device must provide a reasonable assurance of safety and effectiveness before it can be marketed. For electrically powered devices, that includes protection against electrical, mechanical, thermal, and fire hazards. The device manufacturer must address these hazards through design controls and risk management under 21 CFR Part 820, and some device classification regulations list electrical safety testing as a special control. Most manufacturers demonstrate electrical safety using IEC 60601-1 or its U.S. version, ANSI/AAMI ES60601-1. FDA recognizes both standards and accepts declarations of conformity to them in premarket submissions.
For the enclosure, electrical safety requirements affect access to energized components, insulating barriers, creepage and clearance distances, openings, fastener access, and protection against spilled liquids. Conductive coatings, metal inserts, and plated surfaces must be included in the electrical safety assessment because they can reduce required spacing or create unintended current paths. Resin selection and wall geometry must also support the mechanical strength, heat resistance, and fire protection required for the completed device.
Electromagnetic Compatibility and Radio-Frequency Compliance
Radio Frequency
A medical device containing electronic circuitry may be subject to FCC requirements under 47 CFR Part 15 (Radio Frequency Devices), 47 CFR Part 18 (Industrial, Scientific, and Medical Equipment), or both, depending on how it generates and uses radio-frequency energy. A medical device enclosure that houses RF-generating or RF-emitting electronics is part of the device’s tested configuration. FCC authorization applies to the finished electronic device, not the injection-molded enclosure alone. A passive plastic housing does not require FCC authorization, but changing the housing after testing can affect whether the existing compliance evidence still represents the production device.
For enclosure design, manufacturers must determine the device’s RF sources, antenna locations, cable entry points, operating frequencies, and applicable emissions limits before finalizing the housing. Standard plastics do not provide the EMI shielding of metal, so some devices may require conductive coatings, plated surfaces, internal metal shields, or conductive gaskets. Seams, vents, display windows, and connector openings must be designed to limit RF leakage without interfering with antenna performance. Changes to its resin, shielding, openings, or internal layout may require additional compliance evaluation.
Electromagnetic Compatibility
The FDA expects electrically powered medical devices to operate safely in their intended electromagnetic environment. IEC 60601-1-2 is commonly used to evaluate electromagnetic emissions and immunity, including electrostatic discharge, radiated RF, conducted disturbances and electrical transients. Medical device enclosure material, seams, openings, cable entries, grounding and shielding can affect these results.
This requirement overlaps with FCC compliance but is not the same. FCC rules primarily control interference generated by the device, while medical EMC evaluation also examines whether electromagnetic disturbances could disrupt the device’s safety or essential performance.
Biocompatibility
If the medical device enclosures contact the patient or user, their materials may require biological evaluation under the FDA’s guidance on ISO 10993-1. The assessment depends on the type and duration of contact, the material composition, manufacturing residues, colorants, coatings, additives, and cleaning or sterilization processes.
Some enclosures that contact only intact skin may qualify for an FDA pathway that allows specified material information to be submitted in place of new biocompatibility testing. Eligibility depends on the materials, formulation, processing, and conditions of contact. The finished-device manufacturer must still document the enclosure materials, including color additives, and assess biological risk.
Ingress Protection, Cleaning And Disinfection
If the device must resist water, dust, or cleaning fluids, enclosure protection is commonly verified using IEC 60529 IP ratings. The required rating affects seams, gaskets, vents, buttons, connectors, fasteners, and part tolerances.
Cleanability and disinfection requirements also affect resin selection and surface design. The manufacturer must establish that repeated exposure to specified disinfectants does not cause cracking, swelling, discoloration, loss of markings or failure of seals. Crevices, exposed fasteners, and difficult-to-drain recesses may also interfere with cleaning.
Mechanical Strength And Environmental Exposure
IEC 60601-1 and device-specific standards may require impact, drop, push, stability, vibration or transport testing. Home-use equipment may also be subject to IEC 60601-1-11, while emergency medical service equipment may fall under IEC 60601-1-12. The FDA recognizes standards for both environments.
These requirements affect:
- Wall thickness and rib placement
- Boss and fastener design
- Snap-fit strength
- Resistance to impact and repeated handling
- Protection of internal components
- Performance at specified temperature and humidity conditions
Flammability and Heat
Electrical safety testing may require the enclosure or internal insulating components to meet specified resistance-to-heat and fire requirements. UL 94 material ratings often support the assessment, but selecting a UL 94-rated resin does not establish compliance on its own. The rating applies to a specific resin grade, color, additive package and tested thickness.
The design must also control temperatures on accessible surfaces and prevent heat from damaging the enclosure or creating ignition risks. Ventilation can reduce internal temperature but may conflict with ingress protection and EMI shielding.
Human Factors and Labeling
The FDA expects human-factors engineering to be incorporated into device design. Under 21 CFR 820.10(c), manufacturers of Class II, Class III, and specified Class I devices must comply with applicable design and development controls. FDA’s human-factors guidance explains how manufacturers can use human-factors and usability engineering to address user needs and control use-related risks during device design.
For an enclosure, this can affect:
- Control size, spacing and resistance
- Connector shape and placement
- Display viewing angles
- Grip surfaces and carrying features
- Prevention of incorrect assembly or connection
- Access to batteries, consumables and service components
- Visibility and durability of warnings and status indicators
Labeling and Device Identification
21 CFR Part 801 contains medical-device labeling requirements, and 21 CFR Part 830 sets the requirements for unique device identification (UDI). 21 CFR 820.45 requires controls to maintain labeling accuracy and integrity during processing, storage, handling, distribution and use.
The housing may need permanent space for:
- Device identification and UDI information
- Electrical ratings
- Safety symbols and warnings
- FCC identification or compliance information
- Serial numbers and traceability codes
- Cleaning and environmental limitations
Molded, printed, laser-marked, and adhesive labels must remain legible under the expected cleaning, abrasion, and environmental conditions.
Sterilization
If the enclosed device or housing is sterilized, the selected polymer must tolerate the validated sterilization method. Gamma radiation, electron beam, ethylene oxide, steam, and hydrogen peroxide can affect polymers differently. Potential effects include embrittlement, warping, discoloration, dimensional change, and residual chemicals.
Sterilization can also affect adhesives, gaskets, coatings, and printed markings. Requirements depend on whether the device is supplied sterile or reprocessed and on the validated sterilization method.
Work With Ferriot on Medical Device Enclosures
At Ferriot, we work with medical and diagnostic equipment OEMs to develop and manufacture molded plastic housings and enclosures. Involving us before finalizing the design gives customers time to address resin selection, mold design, manufacturability, wall thickness, openings, fasteners, and surface geometry before tooling changes become more costly. Our engineers worked on a variety of medical device enclosures and components, including lens encasements that must transmit light while meeting performance criteria, mobile arms that extend from medical devices, and filters that protect hospital vacuum systems from contamination.
We provide custom injection molding, structural foam and large-part molding, finishing and decorating, EMI/RFI shielding, assembly, and testing. Our enclosure work includes shielding that protects devices from radio-frequency interference and limits electromagnetic interference with the surrounding environment, as well as outer surfaces selected to withstand hospital-strength cleaning products. For applications with specialized material requirements, we can evaluate high-specific-gravity resins as alternatives to lead and electrically conductive resins that build conductivity into the plastic and may reduce the need for separate EMI/RFI shielding.
Keeping molding and secondary operations with one supplier reduces handoffs and gives OEM teams better control of enclosure materials, dimensions, appearance, and configuration. We can also provide documented inspections and lot traceability when required, while the finished-device manufacturer retains responsibility for regulatory compliance and product validation.
